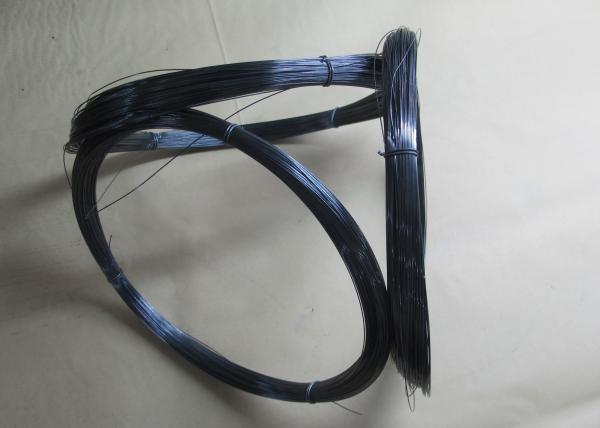

High Pure Mo1 Molybdenum Wire for Making Wire Mesh
High Pure Mo1 Molybdenum Wire
The applications of molybdenum products molybdenum wire :
1. Mandrels for filament-winding coil, space wire and supports for filament, etc.( mo1 )
2. Siderod,support,lead wire for spark profiling cutting and wire for heating furnace etc.(Mo2 )
The standard diameter and tolerance are as follows GB4182-84.
Sizes of Molybdenum Wire
| Types | Diameter (inch) | Tolerance (%) |
| Molybdenum Wire for EDM | 0.007" ~ 0.01" | ±3% wt |
| Molybdenum Spray Wire | 1/16" ~ 1/8" | ±1% to 3% wt |
| Molybdenum Wire | 0.002" ~ 0.08" | ±3% wt |
| Molybdenum Wire(clean) | 0.006" ~ 0.04" | ±3% wt |
Chemical of Molybdenum Products Molybdenum Wire
| test report (MO≥ 99.95%) |
| Si<0.002 | K | S |
| Al<0.0006 | Na | C |
| Fe<0.004 | Ca<0.0015 | O < 0.008 |
| Cu | Pb<0.0003 | N < 0.002 |
| Mg<0.0007 | Bi<0.0003 | |
| Ni<0.002 | Sn<0.0002 | |
| Mn | Sb<0.0005 | |
| P<0.001 | Cd<0.0003 | |
Molybdenum. The all-rounder among the specialists.
With its unique mechanical and chemical properties, molybdenum is an outstanding material that can meet the most exacting requirements. Because molybdenum possesses a very high melting point, a low coefficient of thermal expansion and a high level of thermal conductivity, it is used in many different industries.
Molybdenum is a genuine all-rounder. We use this material, for example, to produce ribbons and molybdenum wire for the lighting industry, semiconductor base plates for power electronics, glass melting electrodes, hot zones for high-temperature furnaces and sputtering targets for coating solar cells and flat screens.
High Pure Mo1 Molybdenum Wire for Making Wire Mesh:
