Machinable High Temperature Furnace TZM Molybdenum Alloy Plates
Description:
TZM is one kind molybdenum alloy with titanium and zirconium as alloy elements. At present, TZM (mo-0.5% ti-0.008% Zr) and TZC (mo-1.25% ti-0.15% zr-0.15% carbon) are widely used. When the temperature exceeds 1300 ° C, the strength of TZM is twice that of pure molybdenum. The recrystallization temperature of TZM is about 250'c higher than that of molybdenum and has better welding performance.
TZM alloy is widely used in many fields because of its high melting point, high strength, good elastic modulus, low coefficient of linear expansion, low vapor pressure, good conductivity, strong corrosion resistance and good high temperature mechanical properties.
TZM can be made into pieces, rods and parts of various shapes. In addition to molybdenum, the size of thin foil is basically the same as molybdenum. At present, the thickness we can roll is less than 0.2mm.
Specification:
| Product Name | Machinable High Temperature Furnace TZM Molybdenum Alloy Plates |
| Material | Ti,Zr,Moly Alloy |
| Chemical Composition | 0.50% Ti, 0.08% Zr ,0.02% C |
| Surface | Final machined surface |
| Size | according to your drawing or requirement. |
| Application | Hih-temperature furnace or glass field |
Chemical composition
| Element | Ti | Zr | C | Mo |
| Content, % | 0.4-0.5 | 0.08-0.12 | 0.01-0.04 | balance |
TZM Molybdenum Alloy Plates Applications
TZM molybdenum alloy can be applied for jet tube of flying vehicle and a variety of components of high inlet temperature, high pressure turbine engine, such as hot gas seals and valves, turbine wheels or wheel blades.
In addition to producing TZM alloy plate, TZM alloy rod and other basic materials, our company also produces finished products of TZM materials, such as:
High temperature structural materials such as high temperature furnace wall and hip heat shield
Material rack and boat dish in high temperature vacuum furnace
TZM high temperature hot working die, such as die casting die and core threading plug for manufacturing aluminum and copper alloy, cast iron and iron series alloy
Tool material for high temperature processing, used as hot extrusion tool for stainless steel and plug for hot processing of seamless steel pipe
Glass furnace agitator, flow port, etc
Used as radiation cover, support frame, heat exchanger and rail on nuclear energy equipment
Aerospace device components.

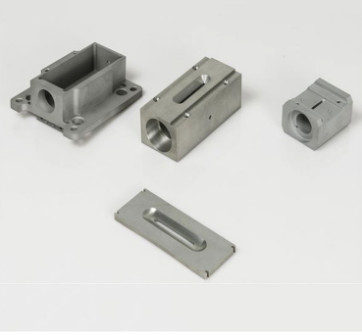

TZM customized parts are available according to drawings.
